Our Products
Industrial Motor Solutions
We are authorized dealers of CG Power (Crompton Greaves) motors offering a comprehensive range of industrial motors from 0.55 KW to 600 KW. All our products come with manufacturer warranty and pan-India service support.
Showing 21 products
Crusher Duty Motors
Heavy-duty motors designed for crushing applications with high starting torque and robust construction.

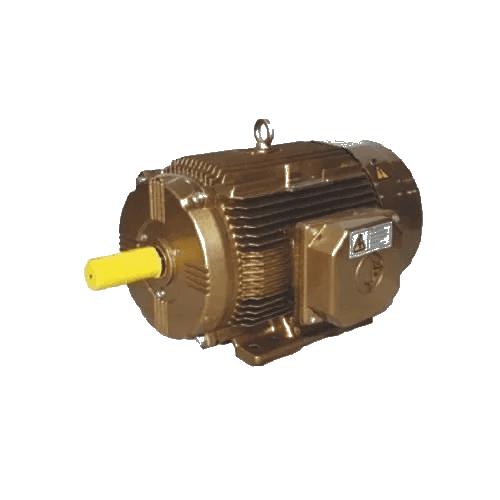

IE4 Motor
Super premium efficiency motors exceeding IE4 standards for maximum energy savings and performance.

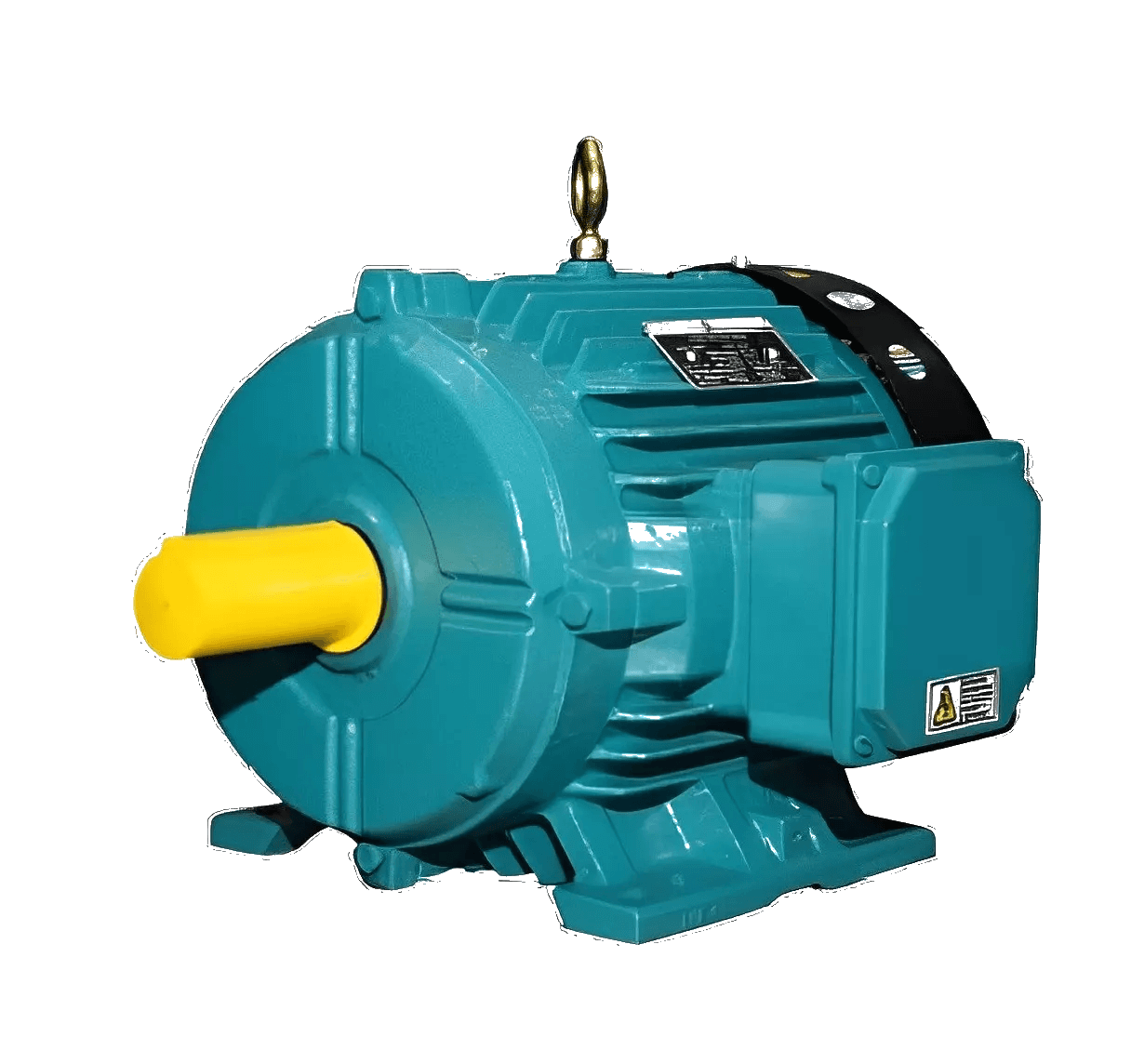

IE3 Premium Efficiency Motors
Premium efficiency motors meeting IE3 standards for excellent energy performance and reliability.
IE2 High Efficiency Motors
High efficiency motors meeting IE2 standards, offering reliable performance for standard industrial applications.
Crane Duty Squirrel Cage Motors
Robust squirrel cage motors specifically designed for crane and hoist applications with high starting torque.

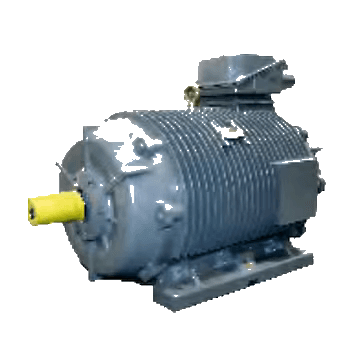

Crane Duty Slip Ring Motors
Slip ring motors for crane applications offering variable speed control and smooth acceleration.
Brake Motors
Integrated brake motors for precise stopping, positioning, and safety in lifting and material handling.

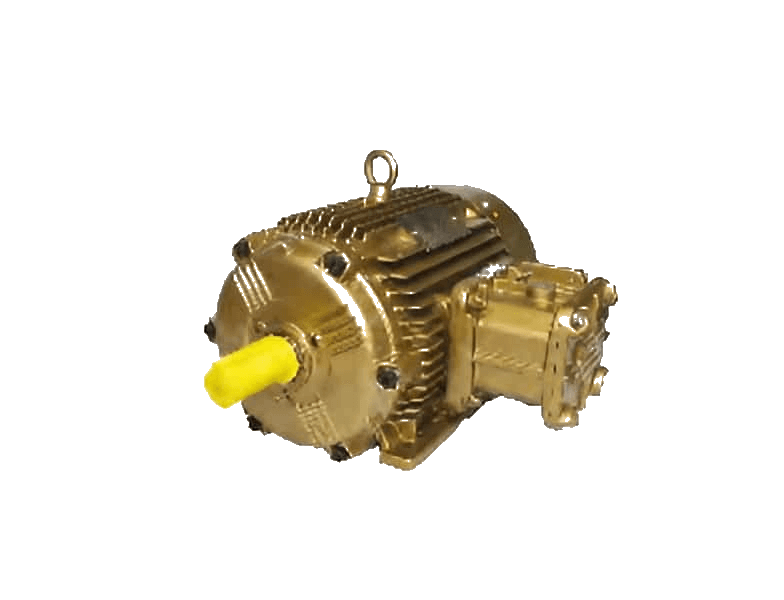

Flame Proof Motors
Explosion-proof motors certified for hazardous environments with flammable gases and vapors.
Smartor Motors (IE2 & IE3)
Advanced smart motors for high-power applications with enhanced interchangeability and rapid availability.
NEMA Motors
Premium NEMA standard motors designed for international applications with 460V/575V configurations.
FLP Brake Motors
Flameproof brake motors with integrated fail-safe braking for hazardous area applications.

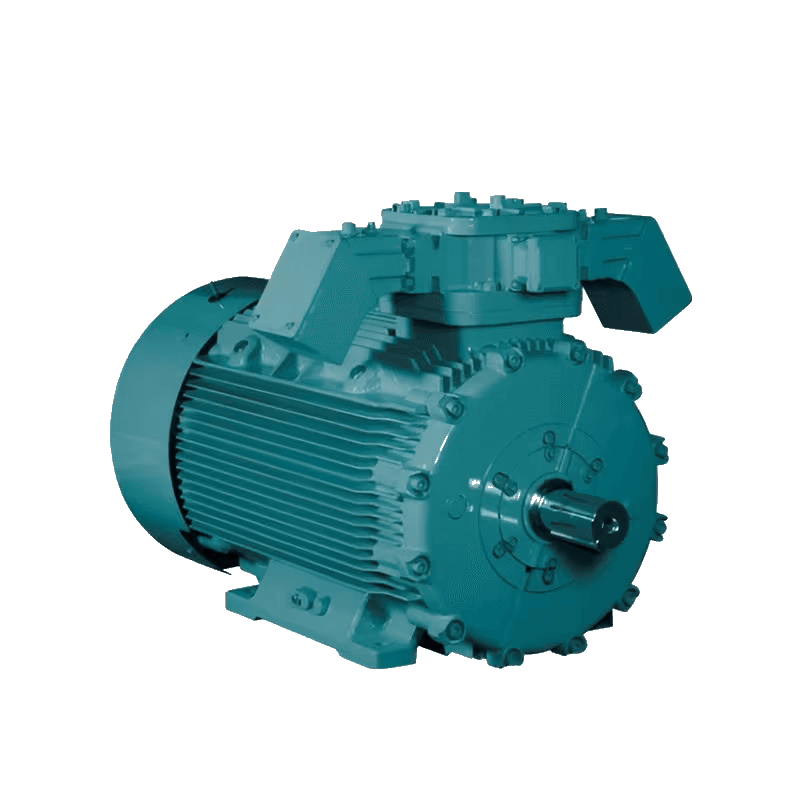

Non-Sparking Motors (Ex 'ec')
Non-sparking motors designed for dust-proof applications in hazardous areas with ignitable dust.
Increased Safety Motors (Ex 'eb')
Increased safety motors with enhanced protection for Zone 1 and Zone 2 hazardous areas.

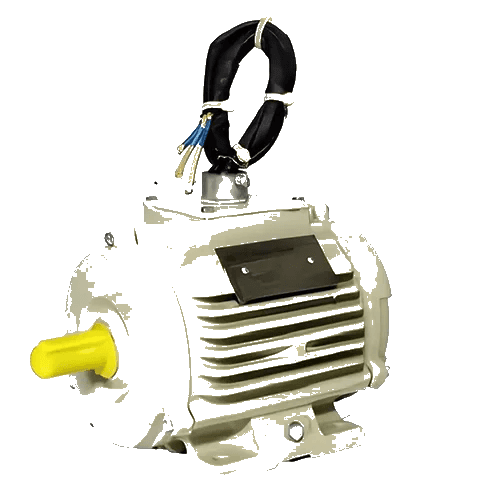

Smoke Extraction Motors
Fire-rated motors designed for smoke extraction systems, operating reliably in high-temperature fire conditions.

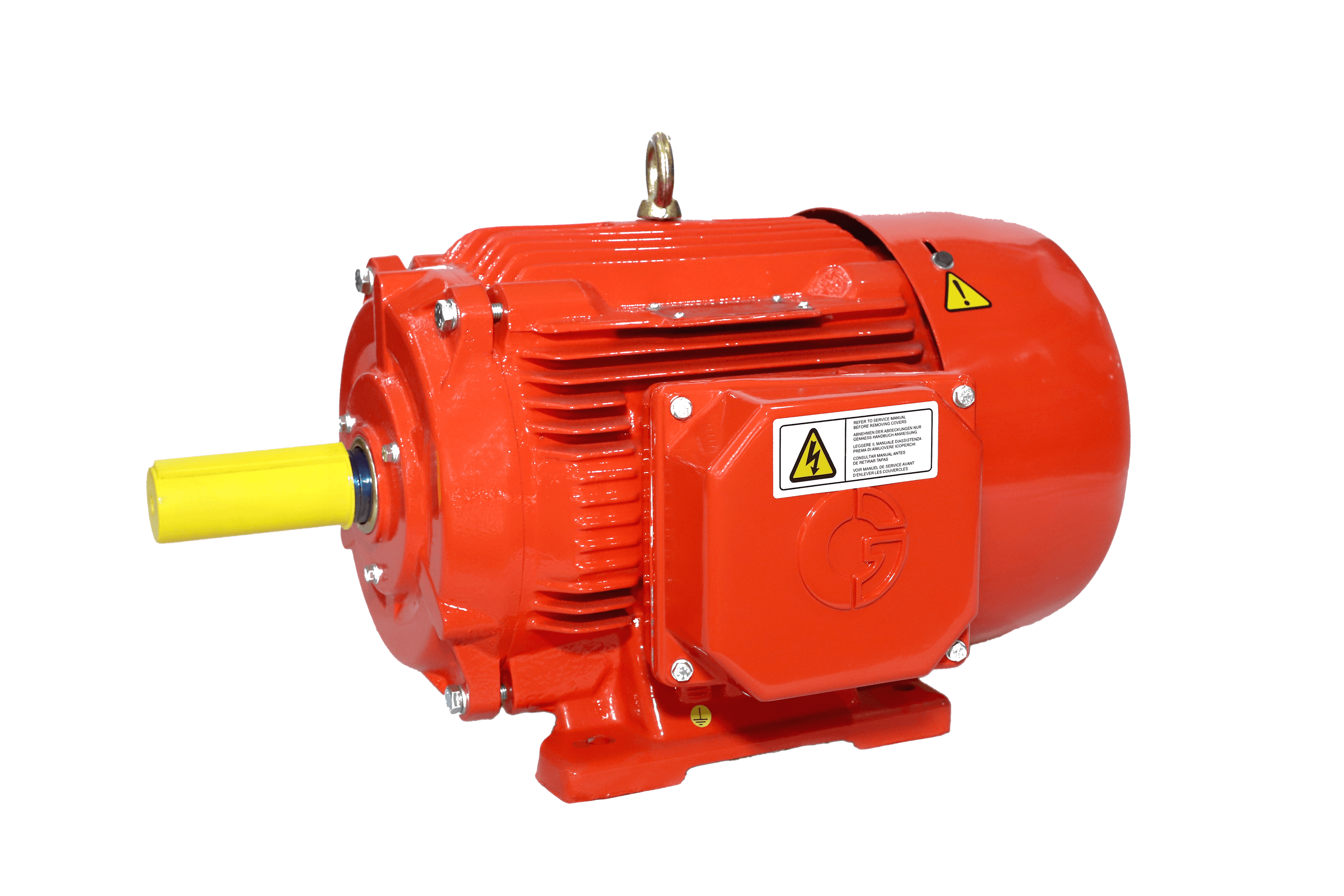

Fire Fighting Motors (UL Listed)
UL-listed fire fighting motors engineered for critical fire pump applications with enhanced reliability.
Aluminium Motors
Lightweight, compact aluminium frame motors with high efficiency for small power applications.

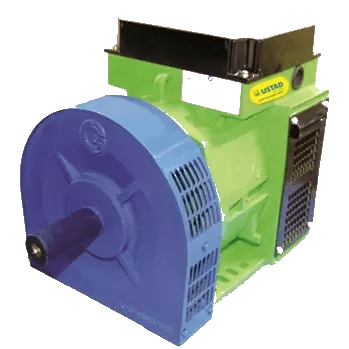

Alternators (USTAD)
High-performance alternators for power generation applications in single and three-phase configurations.
DC Motors (Ajasa Series)
Variable speed DC motors with excellent torque characteristics for precise speed control applications.

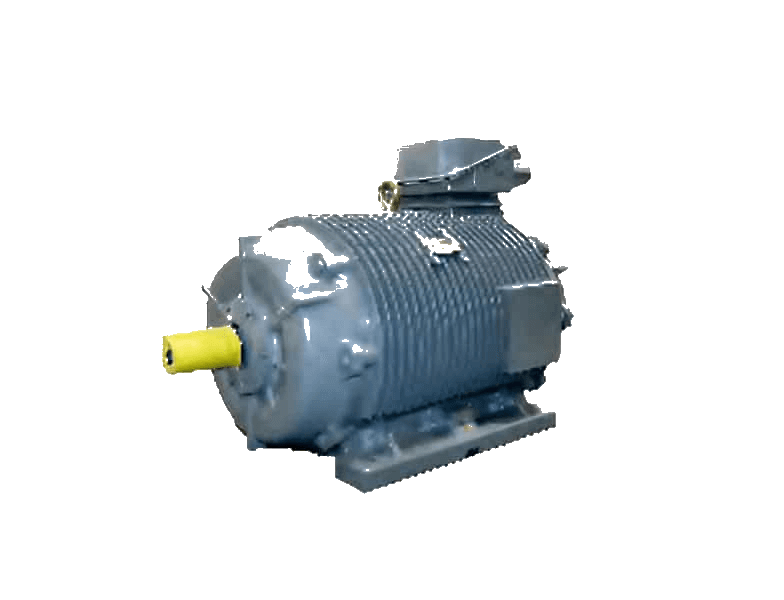

Roller Table Motors (NR Series)
Specialized motors for steel rolling mill roller tables with high reliability and durability.
Slipring Motors (TEFC)
Totally enclosed fan-cooled slipring motors with excellent speed control for general industrial applications.
Slipring Motors (SPDP)
Special design slipring motors with screen-protected drip-proof construction for heavy industrial use.
Need Help Choosing the Right Motor?
Our technical experts can help you select the perfect motor for your application. Get personalized recommendations and quotes.
Technical Specifications
Product Portfolio and Performance Data
Performance data for SAFE AREA Motors complying to Efficiency Class of EC60034-30-1:2014/ IS12615:2018
View IE3/IE2 Motors Full DetailsMotor Specifications
| Voltage | 415 V +/- 10% | Type | Squirrel cage (SCR) | Ambient | 50 Deg C |
| Frequency | 50 Hz +/- 5% | Duty | S1 | Temp rise (R) | 70 Deg C |
| Combined | +/- 10% | Insulation | Class 'F' With Class 'B' temp.rise | Degree of Protection | IP55 |
EFFICIENCY CLASS - IE3
Performance data for IE3 SAFE AREA Motors - EC60034-30-1:2014/ IS12615:2018
| Output | 2 - Pole | 4 - Pole | 6 - Pole | ||||
|---|---|---|---|---|---|---|---|
| kW | HP | Frame | Efficiency | Frame | Efficiency | Frame | Efficiency |
| 0.37 | 0.5 | - | - | - | - | 80M | 73.5 |
| 0.55 | 0.75 | - | - | 80M | 80.8 | 80M | 77.2 |
| 0.75 | 1 | 80M | 80.7 | 80M | 82.5 | 90S | 78.9 |
| 1.1 | 1.5 | 80M | 82.7 | 90S | 84.1 | 90L | 81 |
| 1.5 | 2 | 90S | 84.2 | 90L | 85.3 | 100L | 82.5 |
| 2.2 | 3 | 90L | 85.9 | 100L | 86.7 | 112M | 84.3 |
| 3 | 4 | 100L | 87.1 | 112M | 87.7 | 132S | 85.6 |
| 3.7 | 5 | 100L | 87.8 | 112M | 88.4 | 132S | 86.5 |
| 4 | 5.5 | 112M | 88.1 | 112M | 88.6 | 132S | 86.8 |
| 5.5 | 7.5 | 132S | 89.2 | 132S | 89.6 | 132M | 88 |
| 7.5 | 10 | 132S | 90.1 | 132M | 90.4 | - | - |
| 9.3 | 12.5 | 132M | 90.7 | 132M | 91 | - | - |
Motor Specifications
| Voltage | 415 V +/- 10% | Type | Squirrel cage (SCR) | Ambient | 50 Deg C |
| Frequency | 50 Hz +/- 5% | Duty | S1 | Temp rise (R) | 70 Deg C |
| Combined | +/- 10% | Insulation | Class 'F' With Class 'B' temp.rise | Degree of Protection | IP55 |
EFFICIENCY CLASS - IE2
Performance data for IE2 SAFE AREA Motors - EC60034-30-1:2014/ IS12615:2018
| Output | 2 - Pole | 4 - Pole | 6 - Pole | ||||
|---|---|---|---|---|---|---|---|
| kW | HP | Frame | Efficiency | Frame | Efficiency | Frame | Efficiency |
| 0.37 | 0.5 | - | - | - | - | 80M | 67.6 |
| 0.55 | 0.75 | - | - | 80M | 77.1 | 80M | 73.1 |
| 0.75 | 1 | 80M | 77.4 | 80M | 79.6 | 90S | 75.9 |
| 1.1 | 1.5 | 80M | 79.6 | 90S | 81.4 | 90L | 78.1 |
| 1.5 | 2 | 90S | 81.3 | 90L | 82.8 | 100L | 79.8 |
| 2.2 | 3 | 90L | 83.2 | 100L | 84.3 | 112M | 81.8 |
| 3 | 4 | 100L | 84.6 | 112M | 85.5 | 132S | 83.3 |
| 3.7 | 5 | 100L | 85.5 | 112M | 86.3 | 132S | 84.3 |
| 4 | 5.5 | 112M | 85.8 | 112M | 86.6 | 132S | 84.6 |
| 5.5 | 7.5 | 132S | 87 | 132S | 87.7 | 132M | 86 |
| 7.5 | 10 | 132S | 88.1 | 132M | 88.7 | 132M | 87.2 |
| 9.3 | 12.5 | 132M | 88.9 | 132M | 89.3 | - | - |
| 11 | 15 | 132M | 88.4 | 132M | 89.8 | - | - |
